DG Synchronisation Panel Manufacturer
Product Profile

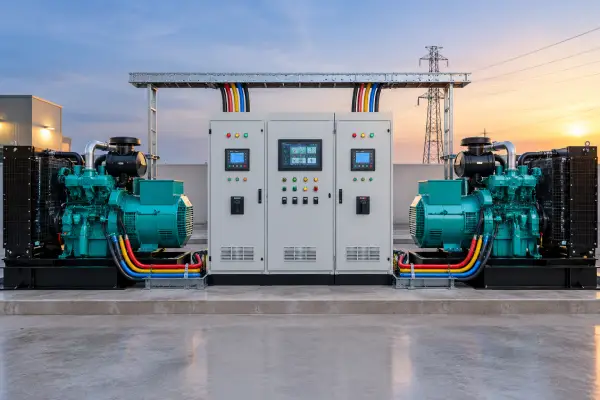

A DG Synchronisation Panel is an electrical control and power management system designed to operate two or more diesel generator sets in parallel. Instead of depending on a single DG set, synchronisation allows multiple generators to share the connected electrical load according to the operating requirement.
Yuva Solution designs and manufactures DG Synchronisation Panels across Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam for industrial facilities where uninterrupted power, controlled generator loading and efficient standby power management are important. The panel coordinates generator voltage, frequency, phase sequence and phase angle before connecting DG sets to a common bus.
Depending on the project, the system can also be integrated with AMF functionality, load management, mains synchronization, protection devices, metering and remote monitoring.
Key Features of DG Synchronisation Panels
- Automatic synchronization of multiple DG sets
- Generator load sharing and controlled power distribution
- Voltage and frequency monitoring
- Phase sequence and phase-angle checking
- Auto and manual operating modes
- Generator start/stop sequencing
- Electrical and mechanical interlocking
- Protection against abnormal operating conditions
- Digital metering and status indication
- Customised busbar and feeder arrangements
- AMF and mains integration where required
- Provision for remote monitoring and control
The configuration is selected according to the number and capacity of DG sets, connected load, generator controller compatibility and site requirements.
Top Benefits of Choosing Yuva Solution’s DG Synchronisation Panels
A properly engineered synchronisation system can make multiple generators work as one coordinated power source. It helps distribute the load between available DG sets rather than unnecessarily operating a single large generator at unsuitable loading.
Major advantages include:
- Better Generator Utilisation: Available DG capacity can be matched with the actual electrical demand.
- Load Sharing: Connected generators can divide the load through a coordinated control system.
- Operational Flexibility: Generators can be added or removed depending on load requirements.
- Improved Power Continuity: Multiple DG sets provide greater flexibility for standby power arrangements.
- Controlled Generator Operation: Start/stop sequences can be configured according to project requirements.
- Easy Monitoring: Electrical parameters and generator status can be viewed through suitable meters, controllers or HMI systems.
- Expandable Configuration: The panel can be engineered around the required number of generators and feeders.
High Tensile Strength and Structural Stability
For an industrial electrical panel, mechanical construction is as important as its control system. Yuva Solution manufactures synchronisation panels using appropriately selected enclosure materials, mounting arrangements, busbar supports and internal partitions according to the application.
The enclosure is designed to provide adequate space for power components, control equipment, communication modules, protection devices and cable termination. Proper component placement also assists inspection, troubleshooting and maintenance.
The panel structure can be customised for floor-mounted or suitable site-specific installations. Busbar supports and internal clearances are selected with consideration for the electrical rating and assembly configuration.
Durable Engineering Components for Industrial Sectors
The performance of a DG synchronisation panel depends on the coordination of its sensing, control, switching and protection components.
A typical system may include:
- Synchronising controller or generator management system
- ACB/MCCB or suitable switching devices
- Current transformers
- Voltage sensing circuits
- Protection relays and monitoring devices
- Digital multifunction meters
- Control relays and auxiliary contactors
- Busbars and insulated supports
- Indication lamps and selector switches
- Emergency stop arrangement
- HMI or communication interface where required
- Battery/control supply interface
- Suitable cable termination and gland arrangements
Component selection is based on DG capacity, fault level, generator controller, outgoing feeders, operating philosophy and site conditions rather than using one standard configuration for every project.
How a DG Synchronisation System Works
When multiple DG sets are required to supply a common electrical bus, the synchronisation controller checks the relevant generator parameters before closing the generator breaker.
A simplified operating sequence is:
DG Start → Parameter Checking → Synchronisation → Breaker Closing → Load Sharing → Continuous Monitoring
The system checks parameters such as voltage, frequency and phase relationship. Once the required conditions are achieved, the generator can be connected to the common bus. The control system then helps maintain coordinated operation between the running DG sets.
For changing load conditions, the system can be configured to start an additional generator or remove a generator from operation according to the predefined control philosophy.
Applications Across Business Verticals
DG synchronisation systems are useful wherever several generator sets are installed to support substantial or critical electrical loads.
Common applications include:
- Manufacturing and engineering plants
- Steel and metal processing facilities
- Cement and construction-material plants
- Mining and mineral-processing sites
- Warehouses and logistics centres
- Commercial and institutional buildings
- Hospitals and healthcare facilities
- Data and communication infrastructure
- Large residential and commercial developments
- Water treatment and utility installations
- Process industries
- Infrastructure and project sites
What Makes Yuva Solution a Trusted Name
Yuva Solution approaches DG synchronisation as an application-specific engineering project rather than simply supplying a standard electrical enclosure. The panel configuration is developed after considering generator ratings, load requirements, switching arrangements, protection philosophy and required automation.
The engineering process may include control logic development, electrical schematic preparation, component selection, panel assembly, wiring, testing and project-specific documentation.
As a DG Synchronisation Panel Manufacturer, Yuva Solution serves customers across Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh and Assam.
Affordable DG Synchronisation Panel Solutions in Eastern India
The right synchronisation panel should balance electrical performance, automation requirements and overall project cost. Yuva Solution develops configurations according to the actual operating requirement, helping customers avoid unnecessary components or oversized arrangements.
Whether the project involves two DG sets or a larger generator network, the panel can be planned around the required capacity, feeders, protection and control functions.
Reliable Support for DG Synchronisation Panels
From initial technical discussion to panel engineering and delivery, Yuva Solution focuses on providing practical support throughout the project. The team can assist with panel configuration, control philosophy, component selection, drawings, testing requirements and integration with associated electrical systems.
The objective is to provide a DG Synchronisation Panel that fits the generator system and operating conditions of the customer’s facility.
Frequently Asked Questions
Yes. A synchronisation system can be engineered to coordinate multiple generator sets operating on a common bus, subject to generator-controller compatibility and project requirements.
It can coordinate generator synchronization, breaker operation, load sharing, generator sequencing and monitoring functions depending on the selected control philosophy.
Yes. DG synchronisation can be combined with mains monitoring and AMF functionality when required.
Yes. It can be engineered for manufacturing plants, process facilities, infrastructure projects, commercial installations and other applications requiring coordinated DG operation.
Yes. Ratings, number of DG sets, feeders, protection devices, metering, communication and enclosure configuration can be selected according to the project.
Contact Yuva Solution
Looking for a DG Synchronisation Panel Manufacturer for your industrial or commercial power system? Yuva Solution provides customised DG synchronisation panel engineering and manufacturing solutions for projects across Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh and Assam. Contact Yuva Solution to discuss your DG capacity, number of generator sets, load requirement and desired control configuration.
