90 & 180 Degree Turn Table Manufacturer
Introduction to Our Product
Yuva Solution provides application-oriented 90 & 180 Degree Turn Table solutions for industries that need to change the direction of material movement within a conveyor or handling line. These systems are designed to redirect products through a quarter turn or a half turn without requiring a lengthy conveyor route.
A 90 Degree Turn Table can be used when materials need to move from one conveyor line to another at a right angle, while a 180 Degree Turn Table is suitable when the product needs to be redirected back toward the opposite direction.
The equipment can be designed according to product dimensions, load requirements, conveyor layout, transfer height, and available floor space. This makes the turn table suitable for customized material handling arrangements in factories, warehouses, packaging units, and logistics facilities.
Top Benefits of Choosing Yuva Solution Turn Tables
A suitable turn table can provide several practical benefits within a material handling setup:
- Makes directional product transfer easier
- Helps utilize factory floor space efficiently
- Connects conveyor lines with different orientations
- Reduces the need for complicated conveyor routing
- Supports organized movement between workstations
- Can be customized for different product dimensions
- Suitable for integration with existing conveyor systems
- Helps create compact material handling layouts
- Can reduce unnecessary manual repositioning of materials
- Available in configurations suitable for different industrial requirements
Product Capabilities
Yuva Solution develops turn table arrangements to suit different material transfer requirements. The system can be incorporated into a larger conveyor network to create a more flexible movement path.

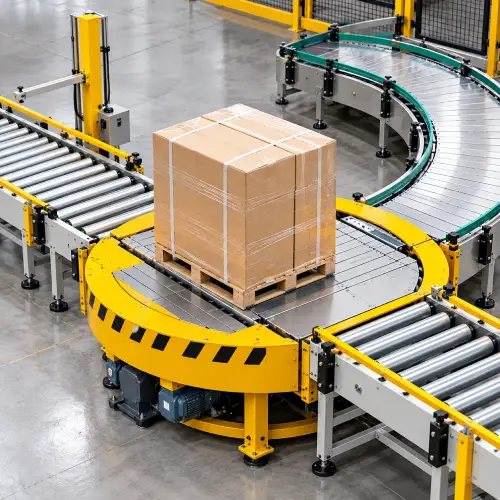

90 Degree Turn Table
The 90-degree configuration changes the product’s travel direction by a right angle. It is useful for connecting conveyors positioned perpendicular to one another or for routing products around machinery and other fixed structures.
180 Degree Turn Table
The 180-degree configuration reverses the direction of material movement. It can be useful in compact production layouts, return lines, inspection arrangements, assembly processes, and other applications where the product needs to travel back along a parallel route.
The operating arrangement can be selected according to the type of product, transfer frequency, required cycle time, and overall conveyor design.
Fields of Operation
The 90 & 180 Degree Turn Table can be used across various sectors where products or materials need to change direction during transportation.
Typical operating areas include:
- Manufacturing plants
- Assembly lines
- Warehouses
- Packaging facilities
- Logistics centers
- Automobile industries
- Engineering units
- Distribution centers
- Material transfer stations
- Production and inspection lines
- Storage and dispatch areas
- Industrial automation setups
The appropriate configuration depends on the product being handled and the desired material movement pattern.
Precision Engineered 90 & 180 Degree Turn Table
Yuva Solution focuses on developing turn table systems with attention to structural stability, directional accuracy, and smooth product transfer. The supporting frame, rotating mechanism, drive arrangement, transfer surface, and control components can be selected according to the operating requirements.
The design can accommodate different load capacities and product dimensions, subject to the application. Proper engineering of the rotating mechanism helps maintain controlled movement while the product changes direction.
For automated production environments, the turn table can also be considered as part of an interconnected conveyor and control system.
Cost-Effective 90 & 180 Degree Turn Table for Commercial and Industrial Use
For facilities with limited floor space, a directional turn table can provide an alternative to installing additional conveyor sections solely to achieve a change in direction. This can help create a more compact material movement arrangement.
Yuva Solution offers application-based configurations so that customers can select a system according to their actual operational requirements instead of investing in unnecessary features or capacity.
The equipment can be considered for commercial warehouses as well as demanding industrial environments where repeated directional transfer is required.
Technical Specification
Technical parameters are finalized according to the application, material characteristics, and conveyor layout.
|
Parameter |
Typical Configuration |
|
Product |
90 & 180 Degree Turn Table |
|
Turning Angle |
90° / 180° |
|
Load Capacity |
Application-specific |
|
Table Size |
As per product dimensions |
|
Working Height |
According to conveyor layout |
|
Drive |
Motorized arrangement as required |
|
Rotation |
Controlled directional movement |
|
Control |
Manual, semi-automatic, or automatic |
|
Frame |
Fabricated industrial-duty structure |
|
Transfer Surface |
Selected according to material |
|
Integration |
Compatible with suitable conveyor layouts |
|
Customization |
Available as per project requirement |
Exact dimensions, capacity, speed, motor rating, and other technical parameters should be finalized after reviewing the customer’s material handling requirements.
90 & 180 Degree Turn Table: Revolutionizing Industrial Material Movement
Modern production and warehouse layouts often require materials to travel through multiple directions without interrupting the workflow. A properly integrated turn table can simplify this requirement by providing a controlled directional transfer point.
The 90-degree model is useful for perpendicular conveyor arrangements, while the 180-degree model can help establish return or reverse-direction movement. This flexibility makes turn tables valuable components within customized conveyor and automation systems.
Yuva Solution focuses on combining practical design with the customer’s existing material flow so that the turn table becomes a functional part of the overall handling process.
Get 90 & 180 Degree Turn Table at the Best Price Today!
Looking for a reliable 90 Degree Turn Table manufacturer or 180 Degree Turn Table manufacturer for your industrial application? Yuva Solution provides customized solutions based on conveyor arrangement, product dimensions, load, operating cycle, and installation requirements.
We serve businesses across Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam.
Whether you require a 90-degree directional transfer or a 180-degree product return arrangement, Yuva Solution can help you identify a suitable configuration for your material handling setup.
Yuva Solution
90 Degree Turn Table Manufacturer | 180 Degree Turn Table Manufacturer
Serving Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh & Assam
Frequently Asked Questions
Special Type Conveyors are customized conveyor systems developed for specific material handling requirements, unusual layouts, or specialized transfer applications.
Yes. Conveyor dimensions, route, height, movement arrangement, and other features can be planned according to the application and available installation space.
The suitable conveyor configuration depends on the material's weight, size, shape, surface characteristics, and handling requirements.
They can be used in manufacturing plants, warehouses, packaging units, assembly areas, logistics facilities, and other industrial locations.
Yes. Yuva Solution serves customers in Kolkata, Bihar, Odisha, Jharkhand, Chhattisgarh, and Assam.
The selection depends on product dimensions, load, conveying distance, required speed, layout, operating environment, and the desired material flow.
